I based this write-up off of this Linode guide.
¶ Prerequisites
- Own a domain that you'll send and receive mail with
- Ability to modify DNS records for the latter domain (Reverse DNS too!)
- A dedicated server (I recommend against attempting to host mail at home)
¶ Server Baseline
Make sure the server's hosts file contains the server's public IP and is associated with it's FQDN and local hostname
127.0.0.1 localhost
192.252.0.6 mail.mydomain.com mail¶ DNS

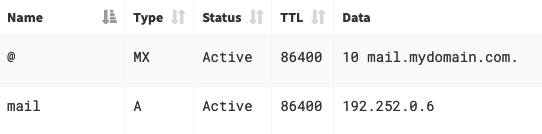

Setup corresponding A and MX records
¶ SSL Cert
Install Certbot to use LetsEncrypt
¶ Install Packages
apt install postfix postfix-mysql dovecot-core dovecot-imapd dovecot-pop3d dovecot-lmtpd dovecot-mysql mariadb-serverPostfix will prompt with the following:

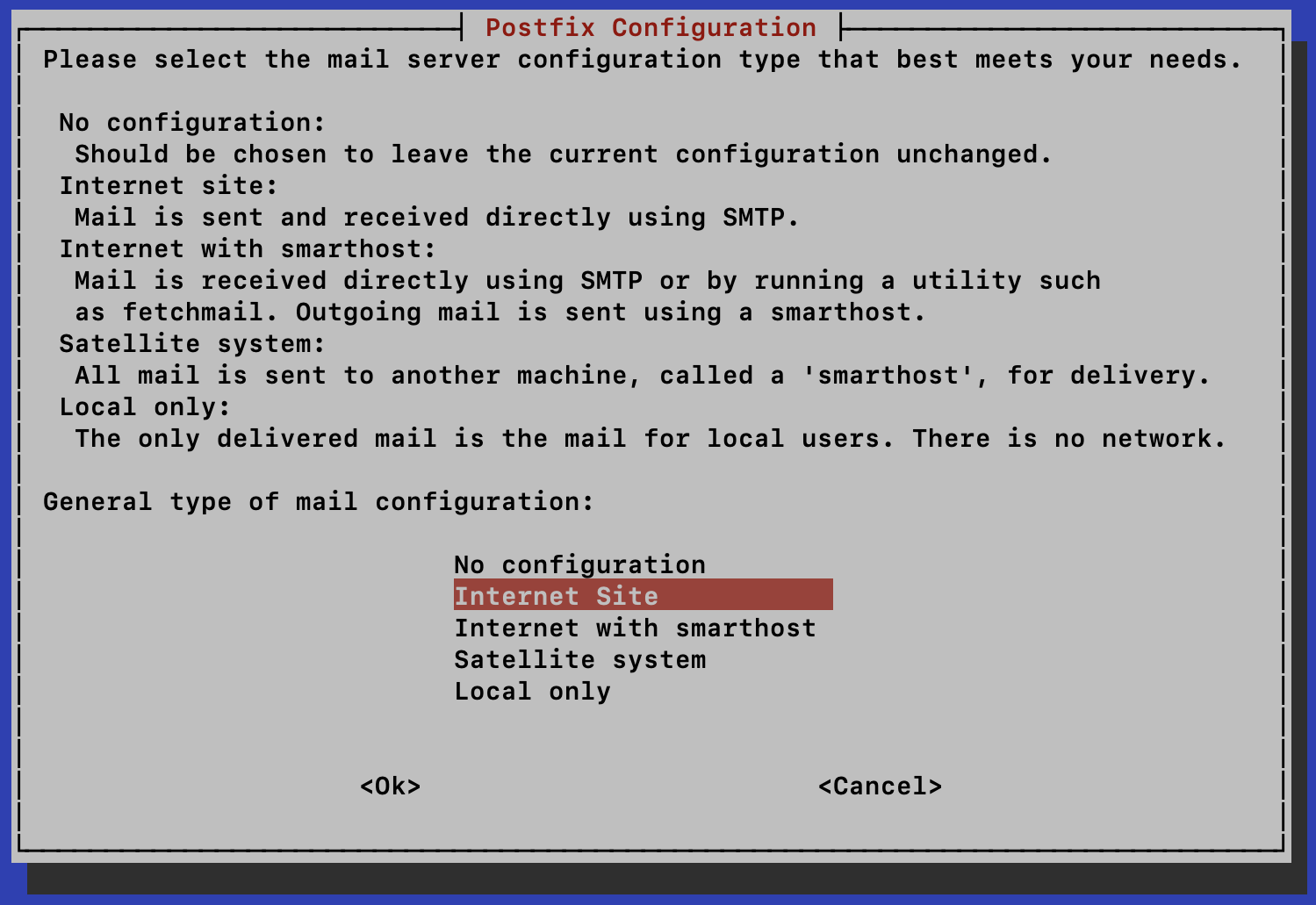

Select ‘Internet Site’

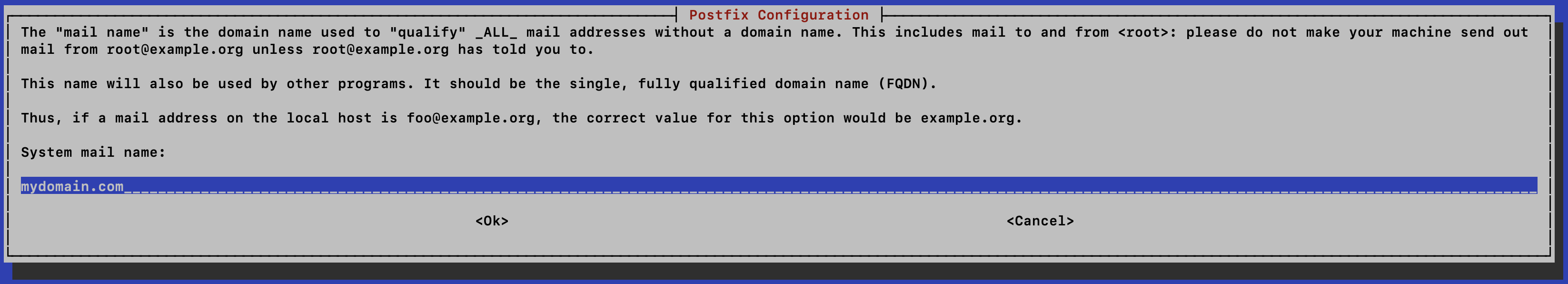

Enter your domain
¶ MySQL / MariaDB
Run the secure installation
mysql_secure_installationLogin to MariaDB as the root user
mysqlCreate a new DB
CREATE DATABASE mail;Create a new user for the mail server to use
CREATE USER 'mailuser'@'127.0.0.1' IDENTIFIED BY '**********';Grant select privileges on the new DB for the new user
GRANT SELECT ON mail.* TO 'mailuser'@'127.0.0.1';Flush privileges
FLUSH PRIVILEGES;Switch to the new mail DB
USE mail;Create a table that will contain the domains that will receive mail
CREATE TABLE `virtual_domains` (
`id` int(11) NOT NULL auto_increment,
`name` varchar(50) NOT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;Create a table that will contain all email address and their respective passwords
CREATE TABLE `virtual_users` (
`id` int(11) NOT NULL auto_increment,
`domain_id` int(11) NOT NULL,
`password` varchar(106) NOT NULL,
`email` varchar(100) NOT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `email` (`email`),
FOREIGN KEY (domain_id) REFERENCES virtual_domains(id) ON DELETE CASCADE
) ENGINE=InnoDB DEFAULT CHARSET=utf8;Create a table for email aliases
CREATE TABLE `virtual_aliases` (
`id` int(11) NOT NULL auto_increment,
`domain_id` int(11) NOT NULL,
`source` varchar(100) NOT NULL,
`destination` varchar(100) NOT NULL,
PRIMARY KEY (`id`),
FOREIGN KEY (domain_id) REFERENCES virtual_domains(id) ON DELETE CASCADE
) ENGINE=InnoDB DEFAULT CHARSET=utf8;¶ Adding Domains
While still logged in to the MariaDB and using the DB ‘mail’. Repeat this command for each domain you would like to add.
INSERT INTO mail.virtual_domains (name) VALUES ('mydomain.com');Verify the domain(s) was added
SELECT * FROM mail.virtual_domains;¶ Adding Email Addresses
From the Linux shell, hash the password for your first email address
doveadm pw -s SHA512-CRYPT -p "*********" -r 5000Return to MariaDB, still using the DB ‘mail’. Repeat this command for each email address you would like to add.
INSERT INTO mail.virtual_users (domain_id, password , email) VALUES ('1', '$6$***********', 'user@mydomain.com');Verify the email address(es) was added
SELECT * FROM mailserver.virtual_users;¶ Adding Aliases
While still logged in to the MariaDB and using the DB ‘mail’. Repeat this command for each alias you would like to add.
INSERT INTO mail.virtual_aliases (domain_id, source, destination) VALUES ('1', 'alias@mydomain.com', 'user@mydomain.com');Verify the alias(es) was added
SELECT * FROM mail.virtual_aliases;¶ Postfix MTA
¶ Postfix File Config
Make a copy of the default Postfix config, just to be safe
cp /etc/postfix/main.cf /etc/postfix/main.cf.origOpen main.cf and change every occurrence example.com to your domain and update the path to your SSL cert and key.
# See /usr/share/postfix/main.cf.dist for a commented, more complete version
# Debian specific: Specifying a file name will cause the first
# line of that file to be used as the name. The Debian default
# is /etc/mailname.
#myorigin = /etc/mailname
smtpd_banner = $myhostname ESMTP $mail_name (Ubuntu)
biff = no
# appending .domain is the MUA's job.
append_dot_mydomain = no
# Uncomment the next line to generate "delayed mail" warnings
#delay_warning_time = 4h
readme_directory = no
# See http://www.postfix.org/COMPATIBILITY_README.html -- default to 2 on
# fresh installs.
compatibility_level = 2
# TLS parameters
smtpd_tls_cert_file=/etc/letsencrypt/live/example.com/fullchain.pem
smtpd_tls_key_file=/etc/letsencrypt/live/example.com/privkey.pem
smtpd_use_tls=yes
smtpd_tls_auth_only = yes
smtp_tls_security_level = may
smtpd_tls_security_level = may
smtpd_sasl_security_options = noanonymous, noplaintext
smtpd_sasl_tls_security_options = noanonymous
# Authentication
smtpd_sasl_type = dovecot
smtpd_sasl_path = private/auth
smtpd_sasl_auth_enable = yes
# See /usr/share/doc/postfix/TLS_README.gz in the postfix-doc package for
# information on enabling SSL in the smtp client.
# Restrictions
smtpd_helo_restrictions =
permit_mynetworks,
permit_sasl_authenticated,
reject_invalid_helo_hostname,
reject_non_fqdn_helo_hostname
smtpd_recipient_restrictions =
permit_mynetworks,
permit_sasl_authenticated,
reject_non_fqdn_recipient,
reject_unknown_recipient_domain,
reject_unlisted_recipient,
reject_unauth_destination
smtpd_sender_restrictions =
permit_mynetworks,
permit_sasl_authenticated,
reject_non_fqdn_sender,
reject_unknown_sender_domain
smtpd_relay_restrictions =
permit_mynetworks,
permit_sasl_authenticated,
defer_unauth_destination
# See /usr/share/doc/postfix/TLS_README.gz in the postfix-doc package for
# information on enabling SSL in the smtp client.
myhostname = example.com
alias_maps = hash:/etc/aliases
alias_database = hash:/etc/aliases
mydomain = example.com
myorigin = $mydomain
mydestination = localhost
relayhost =
mynetworks = 127.0.0.0/8 [::ffff:127.0.0.0]/104 [::1]/128
mailbox_size_limit = 0
recipient_delimiter = +
inet_interfaces = all
inet_protocols = all
# Handing off local delivery to Dovecot's LMTP, and telling it where to store mail
virtual_transport = lmtp:unix:private/dovecot-lmtp
# Virtual domains, users, and aliases
virtual_mailbox_domains = mysql:/etc/postfix/mysql-virtual-mailbox-domains.cf
virtual_mailbox_maps = mysql:/etc/postfix/mysql-virtual-mailbox-maps.cf
virtual_alias_maps = mysql:/etc/postfix/mysql-virtual-alias-maps.cf,
mysql:/etc/postfix/mysql-virtual-email2email.cf
# Even more Restrictions and MTA params
disable_vrfy_command = yes
strict_rfc821_envelopes = yes
#smtpd_etrn_restrictions = reject
#smtpd_reject_unlisted_sender = yes
#smtpd_reject_unlisted_recipient = yes
smtpd_delay_reject = yes
smtpd_helo_required = yes
smtp_always_send_ehlo = yes
#smtpd_hard_error_limit = 1
smtpd_timeout = 30s
smtp_helo_timeout = 15s
smtp_rcpt_timeout = 15s
smtpd_recipient_limit = 40
minimal_backoff_time = 180s
maximal_backoff_time = 3h
# Reply Rejection Codes
invalid_hostname_reject_code = 550
non_fqdn_reject_code = 550
unknown_address_reject_code = 550
unknown_client_reject_code = 550
unknown_hostname_reject_code = 550
unverified_recipient_reject_code = 550
unverified_sender_reject_code = 550main.cf defines the location of the virtual_mailbox_domains, virtual_mailbox_maps, and virtual_alias_maps files. These files contain credentials and a query for mailbox domains, users, and aliases.
Create each file:
/etc/postfix/mysql-virtual-mailbox-domains.cf
user = mailuser
password = mailuserpass
hosts = 127.0.0.1
dbname = mailserver
query = SELECT 1 FROM virtual_domains WHERE name='%s'/etc/postfix/mysql-virtual-mailbox-maps.cf
user = mailuser
password = mailuserpass
hosts = 127.0.0.1
dbname = mailserver
query = SELECT 1 FROM virtual_users WHERE email='%s'/etc/postfix/mysql-virtual-alias-maps.cf
user = mailuser
password = mailuserpass
hosts = 127.0.0.1
dbname = mailserver
query = SELECT destination FROM virtual_aliases WHERE source='%s'/etc/postfix/mysql-virtual-email2email.cf
user = mailuser
password = mailuserpass
hosts = 127.0.0.1
dbname = mailserver
query = SELECT email FROM virtual_users WHERE email='%s'Restart Postfix
systemctl restart postfix¶ Test Postfix
Each one of these tests should return 1
Test virtual_domains table
postmap -q mydomain.com mysql:/etc/postfix/mysql-virtual-mailbox-domains.cfTest virtual_users table
postmap -q user@mydomain.com mysql:/etc/postfix/mysql-virtual-mailbox-maps.cfTest virtual_aliases table
postmap -q user-alias@mydomain.com mysql:/etc/postfix/mysql-virtual-alias-maps.cf¶ Master Program Config
Create a backup of the config
cp /etc/postfix/master.cf /etc/postfix/master.cf.origEdit your config to match the following, everything else can be left alone
#
# Postfix master process configuration file. For details on the format
# of the file, see the master(5) manual page (command: "man 5 master" or
# on-line: http://www.postfix.org/master.5.html).
#
# Do not forget to execute "postfix reload" after editing this file.
#
# ==========================================================================
# service type private unpriv chroot wakeup maxproc command + args
# (yes) (yes) (yes) (never) (100)
# ==========================================================================
smtp inet n - n - - smtpd
#smtp inet n - - - 1 postscreen
#smtpd pass - - - - - smtpd
#dnsblog unix - - - - 0 dnsblog
#tlsproxy unix - - - - 0 tlsproxy
submission inet n - y - - smtpd
-o syslog_name=postfix/submission
-o smtpd_tls_security_level=encrypt
-o smtpd_sasl_auth_enable=yes
-o smtpd_sasl_type=dovecot
-o smtpd_sasl_path=private/auth
-o smtpd_reject_unlisted_recipient=no
-o smtpd_client_restrictions=permit_sasl_authenticated,reject
-o milter_macro_daemon_name=ORIGINATING
smtps inet n - - - - smtpd
-o syslog_name=postfix/smtps
-o smtpd_tls_wrappermode=yes
-o smtpd_sasl_auth_enable=yes
-o smtpd_sasl_type=dovecot
-o smtpd_sasl_path=private/auth
-o smtpd_client_restrictions=permit_sasl_authenticated,reject
-o milter_macro_daemon_name=ORIGINATING
...Tighten down permissions for the Postfix config dir
chmod -R o-rwx /etc/postfixRestart Postfix
systemctl restart postfix¶ Dovecot
Edit /etc/dovecot/dovecot.conf. Add the following config
!include_try /usr/share/dovecot/protocols.d/*.protocol
protocols = imap pop3 lmtp
postmaster_address = postmaster at example.comEdit /etc/dovecot/conf.d/10-mail.conf. Modify/add the following
...
mail_location = maildir:/var/mail/vhosts/%d/%n/
...
mail_privileged_group = mail
...Create a vhosts directory with a sub-directory for your domain(s)
mkdir -p /var/mail/vhosts/mydomain.comCreate the vmail group with ID 5000. Add a new user vmail to the vmail group. This system user will read mail from the server.
groupadd -g 5000 vmail
useradd -g vmail -u 5000 vmail -d /var/mailChange ownership of of /var/mail
chown -R vmail:vmail /var/mailModify these parameters in /etc/dovecot/conf.d/10-auth.conf
...
disable_plaintext_auth = yes
...
auth_mechanisms = plain login
...
!include auth-system.conf.ext
...
!include auth-sql.conf.ext
...Ensure /etc/dovecot/conf.d/auth-sql.conf.ext contains the following lines
...
passdb {
driver = sql
args = /etc/dovecot/dovecot-sql.conf.ext
}
...
#userdb {
# driver = sql
# args = /etc/dovecot/dovecot-sql.conf.ext
#}
...
userdb {
driver = static
args = uid=vmail gid=vmail home=/var/mail/vhosts/%d/%n
}
...Update the /etc/dovecot/dovecot-sql.conf.ext file with your MySQL connection information. Make sure to uncomment the following parameters.
...
driver = mysql
...
connect = host=127.0.0.1 dbname=mailserver user=mailuser password=mailuserpass
...
default_pass_scheme = SHA512-CRYPT
...
password_query = SELECT email as user, password FROM virtual_users WHERE email='%u';
...Change the owner and group of the /etc/dovecot/ directory to vmail and dovecot
chown -R vmail:dovecot /etc/dovecotChange the permissions on the /etc/dovecot/ directory
chmod -R o-rwx /etc/dovecotEdit the service settings file /etc/dovecot/conf.d/10-master.conf
Disable the unencrypted services by telling them to listen on port 0.
...
service imap-login {
inet_listener imap {
port = 0
}
inet_listener imaps {
port = 993
ssl = yes
}
...
}
...
service pop3-login {
inet_listener pop3 {
port = 0
}
inet_listener pop3s {
port = 995
ssl = yes
}
}
...Find the service lmtp section of the file and use the configuration shown below:
...
service lmtp {
unix_listener /var/spool/postfix/private/dovecot-lmtp {
#mode = 0666i
mode = 0600
user = postfix
group = postfix
}
...
}Locate service auth and configure it as shown below:
...
service auth {
...
unix_listener /var/spool/postfix/private/auth {
mode = 0660
user = postfix
group = postfix
}
unix_listener auth-userdb {
mode = 0600
user = vmail
}
...
user = dovecot
}
...In the service auth-worker section, uncomment the user line and set it to vmail:
...
service auth-worker {
...
user = vmail
}Edit /etc/dovecot/conf.d/10-ssl.conf file to require SSL and to add the location of your domain’s SSL certificate and key. Replace example.com with your domain:
...
# SSL/TLS support: yes, no, required. <doc/wiki/SSL.txt>
ssl = required
...
ssl_cert = </etc/letsencrypt/live/example.com/fullchain.pem
ssl_key = </etc/letsencrypt/live/example.com/privkey.pemRestart Dovecot to enable the new config
systemctl restart dovecot¶ Testing the Email Server with Mailutils
Install mailutils
apt install mailutilsSend a test email to an email address outside of your mail server, like a Gmail account. Replace email1@example.com with an email address from your mail server:
echo "Email body text" | sudo mail -s "Email subject line" recipient@gmail.com -aFrom:email1@example.comVerify that the gmail address received the test email.
